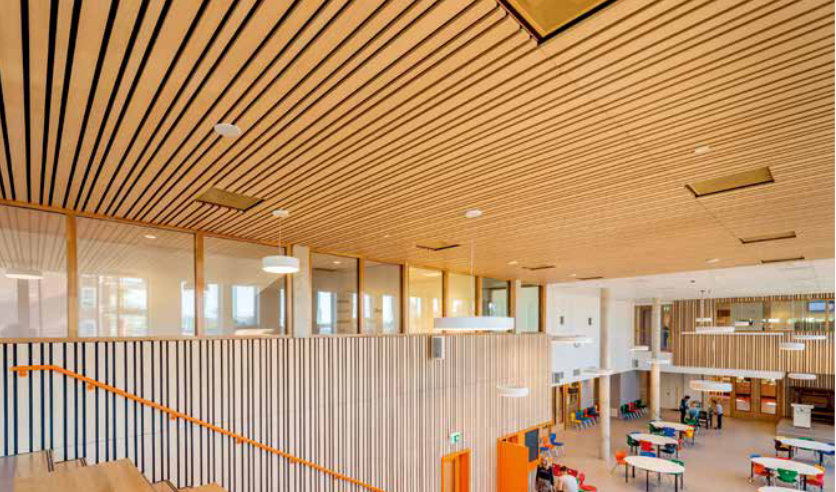

Linear Veneered Wood
KEY FEATURES :
- Interior applications
- MDF core with a wooden top layer
- Cassette sizes 600 x 600 mm to 1200 x 1200 mm
- Panel width: 90 - 120 - 150 - 200 - 230 mm
- Panel thickness: 17 or 20 mm
- Joint width: 5 - 10 - 15 - 20 - 30 mm
- Multi-panel layouts possible, combining different widths
- Other sizes and dimensions are available upon request
- Variety of organic or engineered wood veneers, FSC or PEFC certified
- Optionally supplied with acoustic fleece
- Available as cassettes or as individual linear panels
- Also available as wall solution (see page 328) or exterior application (see page 276)
- Curved and undulating shapes possible
- Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
TYPICAL ISOMETRICS :
- 1 = Linear Cassette Element
- 2 = Main runner
- 3 = Cross runner
- 4 = Quick hanger
